FRP Backing Ring DN900 for PE & PP Pipes
Article BR-900-915-03/06 · Drilling EN1092 PN6 · Working pressure up to 3 Bar
BR-900-915-03/06
- Material: FRP (Fiber Reinforced Plastic)
- Pipe system: PE & PP
- Nominal size: DN900
- Max pressure: 3 Bar
- Drilling: EN1092 PN6
- Manufacturing: Resin Transfer Moulding (RTM)

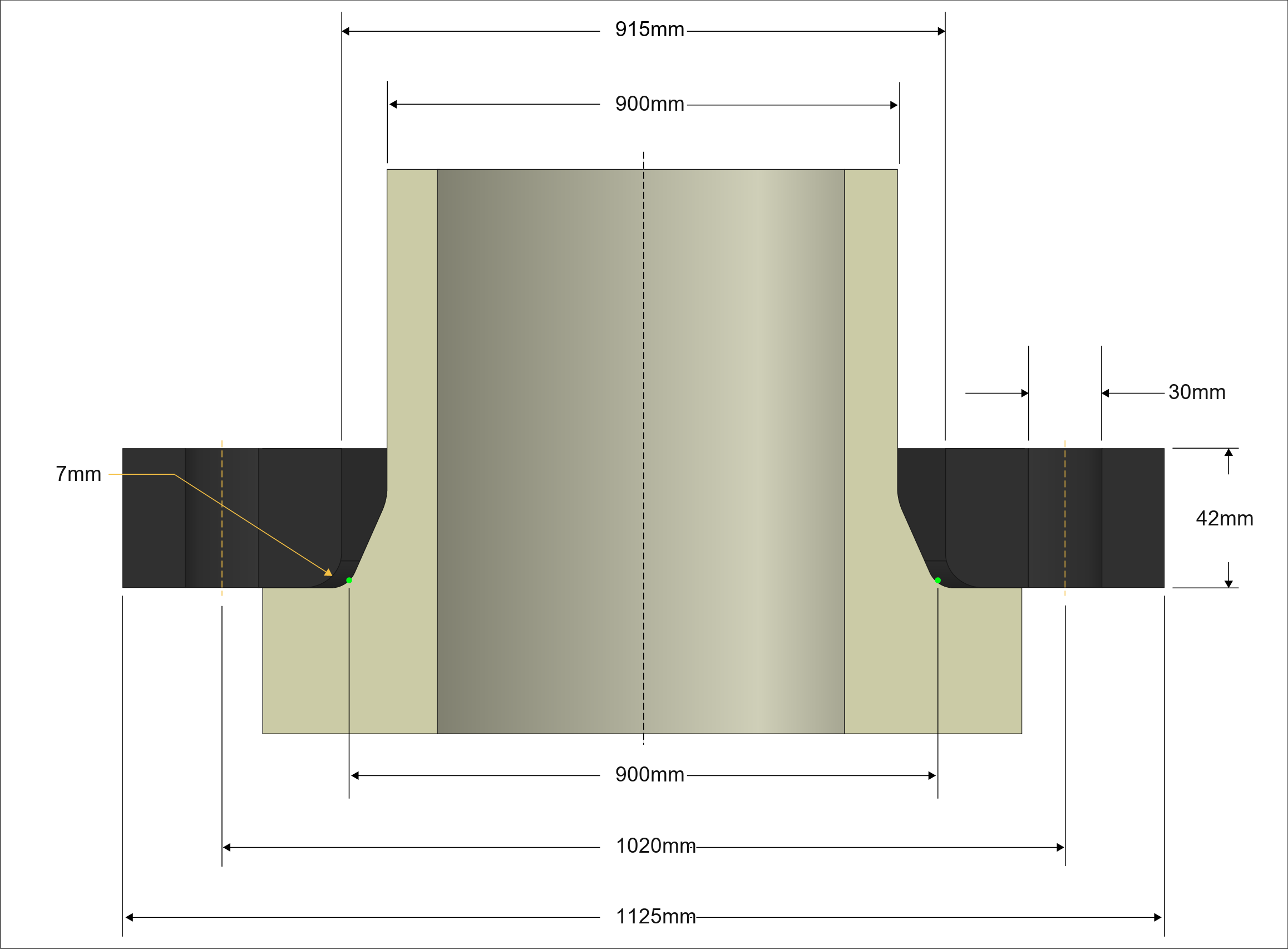

Technical Specifications
| Property | Value |
|---|---|
| Article number | BR-900-915-03/06 |
| Pipe system | PE & PP |
| Nominal diameter (DN) | 900 mm |
| Max working pressure | 3 Bar |
| Drilling standard | EN1092 PN6 |
| Pipe OD | 900 mm |
| Outer diameter (D) | 1125 mm |
| Inner diameter (d1) | 915 mm |
| Inner stub OD (d10) | 900 mm |
| Radius (r1) | 7 mm |
| Bolt circle (k) | 1020 mm |
| Bolt holes | 24 |
| Bolt hole diameter (d2) | 30 mm |
| Thickness (b1) | 42 mm |
| Material | FRP (Fiber Reinforced Plastic) |
| Manufacturing process | Resin Transfer Moulding (RTM) |
| Quality | ISO 9001 certified |
About this Backing Ring
This BR-900-915-03/06 is an FRP (Fiber Reinforced Plastic) Backing Ring designed for use behind PE & PP stub flanges in industrial piping systems. With a nominal size of DN900 and working pressure rated up to 3 Bar, it carries the bolt load on flanged connections to other equipment - pumps, valves, vessels, or matching steel flanges - without distorting the plastic pipe.
The drilling pattern matches EN1092 PN6, ensuring drop-in compatibility with industry-standard counter-flanges. Manufactured by Resin Transfer Moulding (RTM) - a closed-mold resin infusion process - this large-diameter Backing Ring is built to engineered tolerances with precise reinforcement positioning and constant material quality.
Like all FRP Backing Rings from BackingRing.com, this part is fully corrosion-free, lightweight relative to a metal equivalent, and intended for service in chemical processing, water and wastewater treatment, mining, marine and other demanding environments.
Common applications for DN900 PE & PP Backing Rings
- Connecting PE & PP pipe spools to flanged pumps, valves and instrumentation
- Tie-ins between PE & PP sections and steel/ductile-iron piping in mixed-material plants
- Replacement of corroded metal backing rings in saltwater or chemical service
- OEM equipment skid assemblies requiring a lightweight, non-rusting flange backing
